Chimney Flashing Leak: Causes, Signs, and Repair Solutions
Learn what causes chimney flashing leaks, how to spot the warning signs early, and how to fix the problem with the correct long-term repair methods.
Chimney flashing failure is one of the most common causes of water intrusion where the roof meets the chimney. In many cases, what appears to be a simple flashing issue is actually part of a larger chimney leak affecting multiple components of the chimney system.
A chimney flashing leak is one of the most common causes of water intrusion around a chimney. Because flashing seals the gap between the roof and chimney structure, even a small failure allows water to penetrate your roofing system and enter your home.
In many cases, what looks like a general chimney leak repair issue actually comes from failed or improperly installed flashing.
🔍 What Is a Chimney Flashing Leak?
A chimney flashing leak occurs when water bypasses the metal flashing system installed where the roof meets the chimney. This system should direct water away from the chimney and onto the roof surface.
When flashing fails, water enters at the roofline and travels into the attic, ceiling, or walls.
Most flashing leaks happen because:
- installers use shortcuts instead of proper step flashing
- sealants fail over time
- counter flashing is missing or improperly embedded into the brick
Many homeowners first notice the problem as staining near the fireplace or ceiling, but the actual issue begins on the roof.
⚠️ Why Chimney Flashing Leaks Occur
Chimney flashing leaks typically develop due to one or more of the following issues:
1. Improper Flashing Installation
If step flashing and counter flashing are not installed correctly, water can bypass the system entirely.

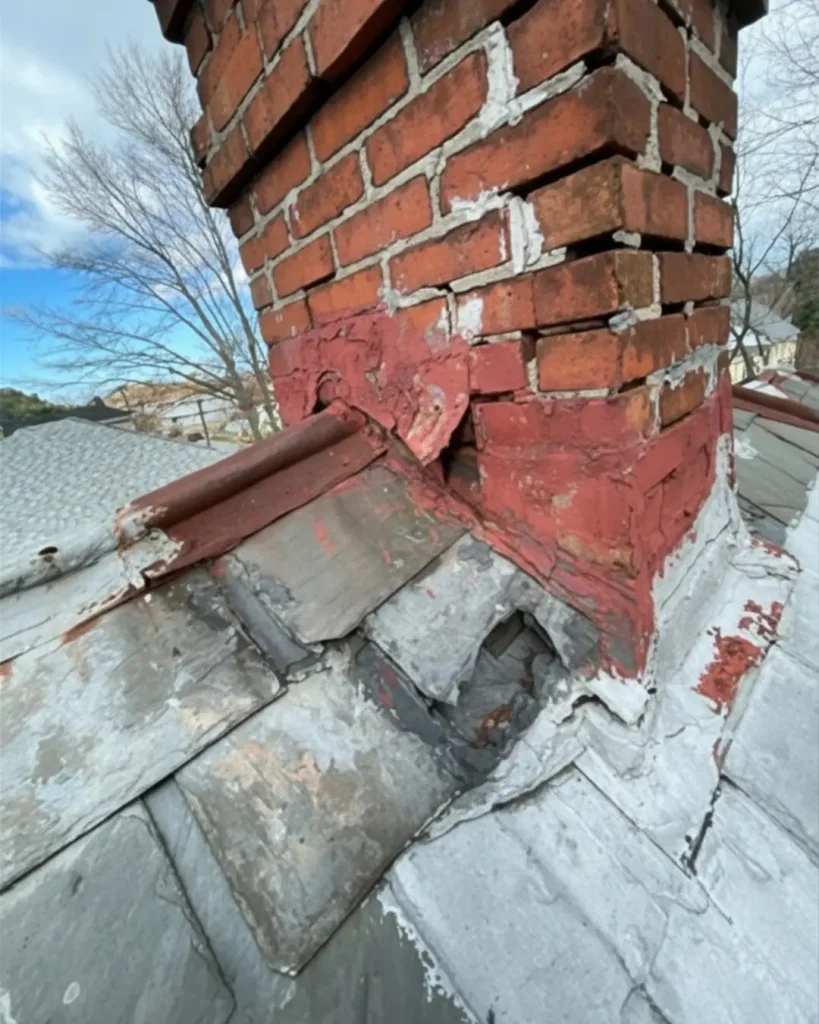

2. Missing or Failed Counter Flashing
Counter flashing protects the top edge of step flashing. Without it, water will penetrate behind the flashing.

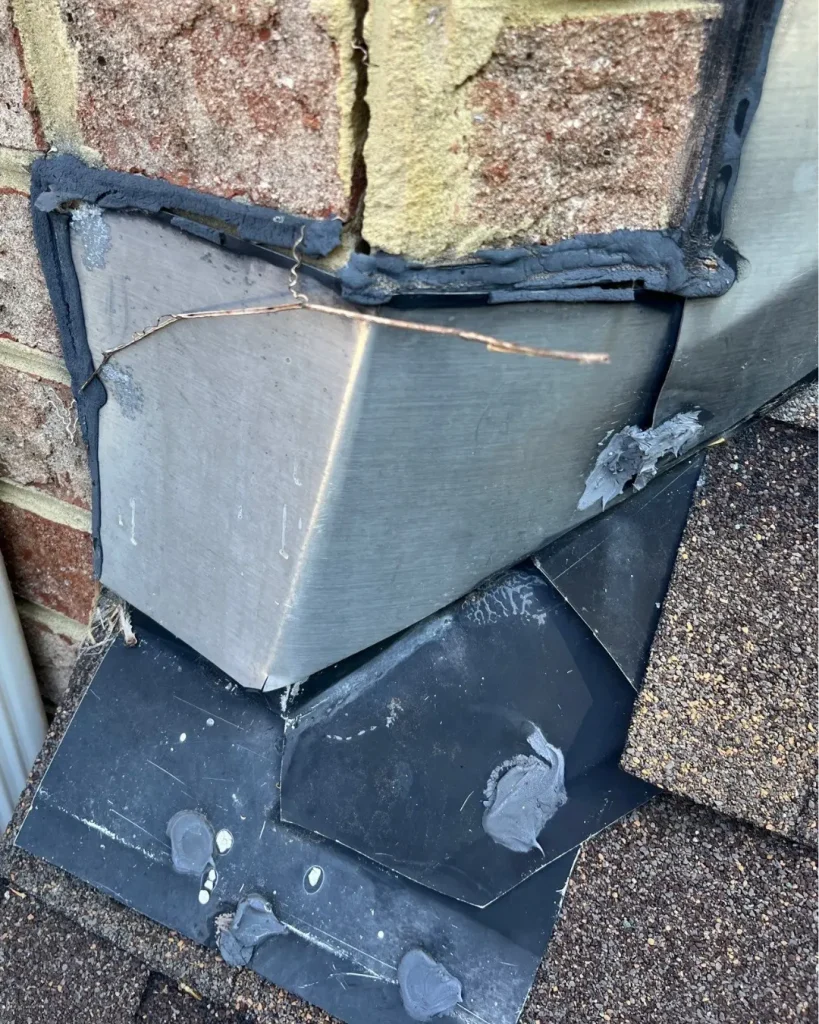

3. Sealant Failure
Over time, sealants crack, shrink, or deteriorate, allowing water to enter.
4. Roof Movement and Settling
As the roof expands and contracts, flashing can loosen or separate from the chimney.
5. Corrosion and Material Breakdown
Galvanized flashing can rust over time, especially in coastal environments.
Why Chimney Flashing Is the Leading Cause of Chimney Leaks
The intersection between the roof and chimney is one of the most vulnerable areas on any home. Because different materials expand and contract at different rates, even a small failure in flashing can lead to a larger chimney leak problem that allows water to enter the roofing system and interior structure.
🚨 How Do You Know If Your Chimney Flashing Is Leaking?
Identifying a flashing leak early can prevent extensive damage. Common signs include:

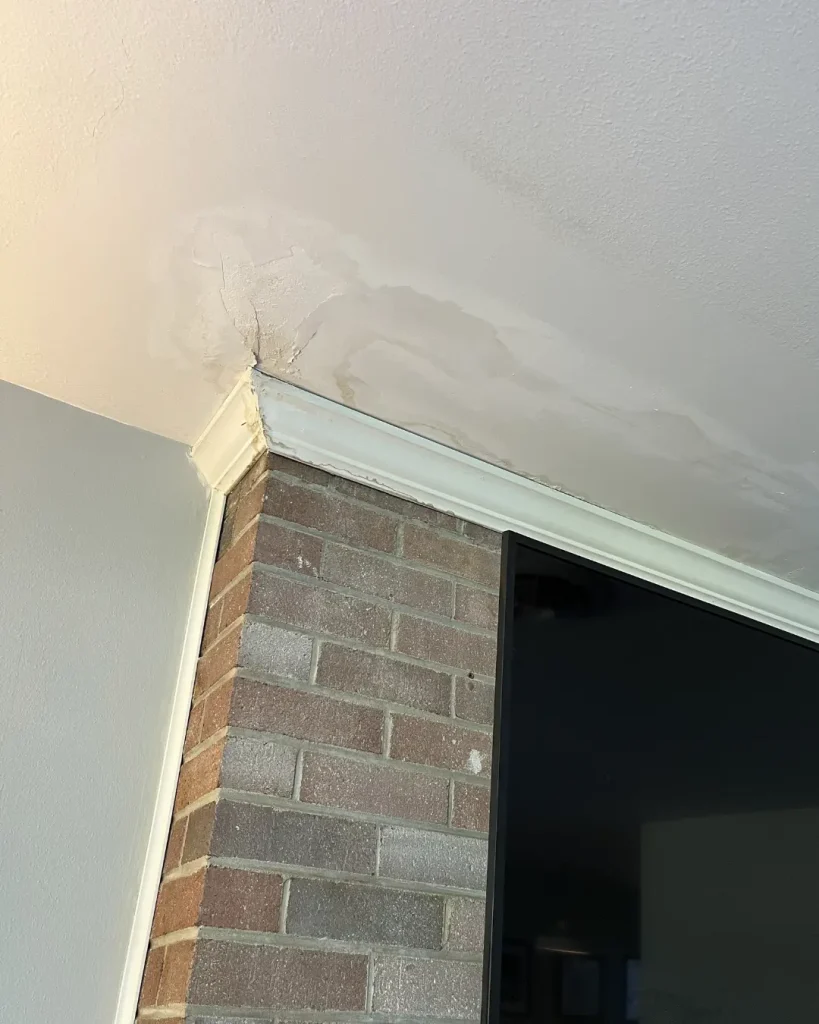

- Water stains on ceilings near the chimney
- Leaks that appear during or after heavy rain

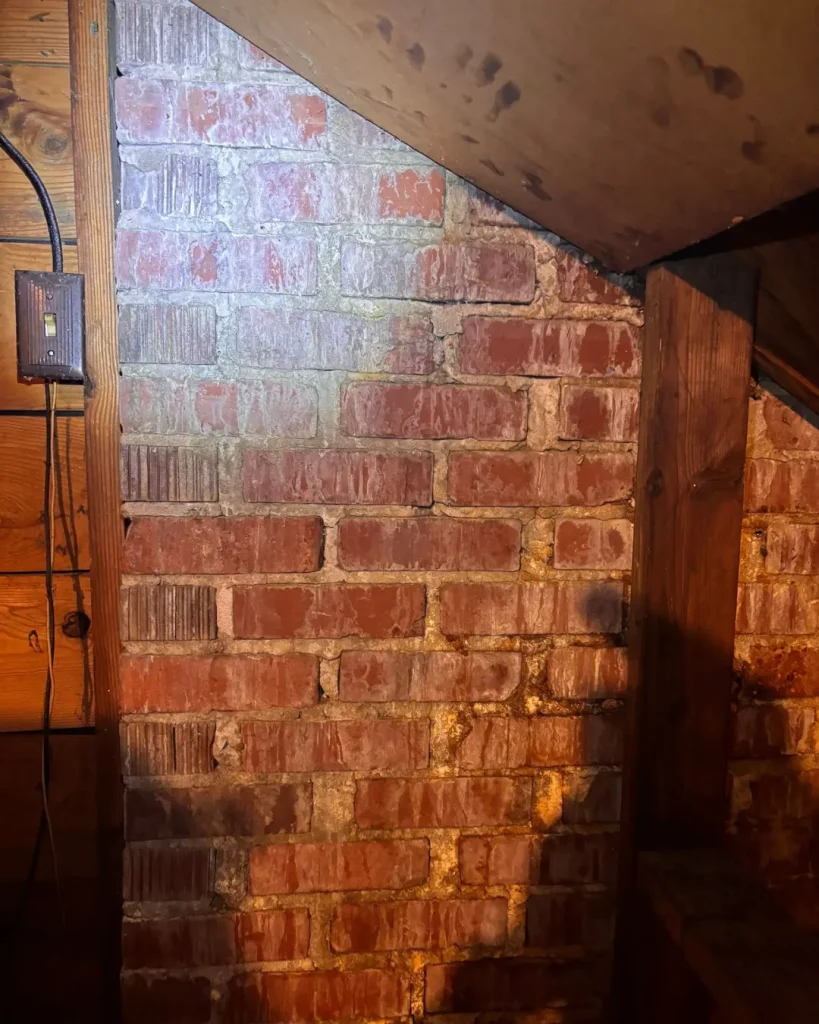

- Moisture in the attic near the chimney base
- Rusted or visibly damaged flashing
- Damp drywall or peeling paint near the chimney
If you notice these symptoms, it may indicate a failure in the flashing system rather than a general roof leak.
🌊 Why Chimney Flashing Leaks Are Common in Coastal Areas Like Hampton Roads, VA
Homes in coastal regions such as Hampton Roads are especially vulnerable to chimney flashing leaks due to:
- Wind-driven rain forcing water under flashing layers
- High humidity accelerating material deterioration
- Salt air contributing to corrosion of metal components
- Heavy storms and seasonal weather fluctuations
Because of these factors, chimney flashing systems in this region must be installed with precision and maintained regularly.
🔎 How Chimney Flashing Leaks Are Diagnosed
Proper diagnosis is critical. A professional inspection should include:
- Visual inspection of step and counter flashing
- Examination of roof-to-chimney connection points
- Checking for gaps, corrosion, or missing components
- Attic inspection for water intrusion patterns
In many cases, a chimney leak that appears to be coming from the masonry or interior is actually originating at the flashing.
🛠️ Chimney Flashing Repair vs Replacement
The correct solution depends on the severity of the damage.
Repair May Be Possible When:
- Minor gaps or sealant failure is present
- Flashing is intact but slightly separated
- No major corrosion or structural damage exists
Full Replacement Is Required When:
- Flashing was improperly installed
- Counter flashing is missing or ineffective
- Materials are rusted or deteriorated
- Roof replacement is being performed

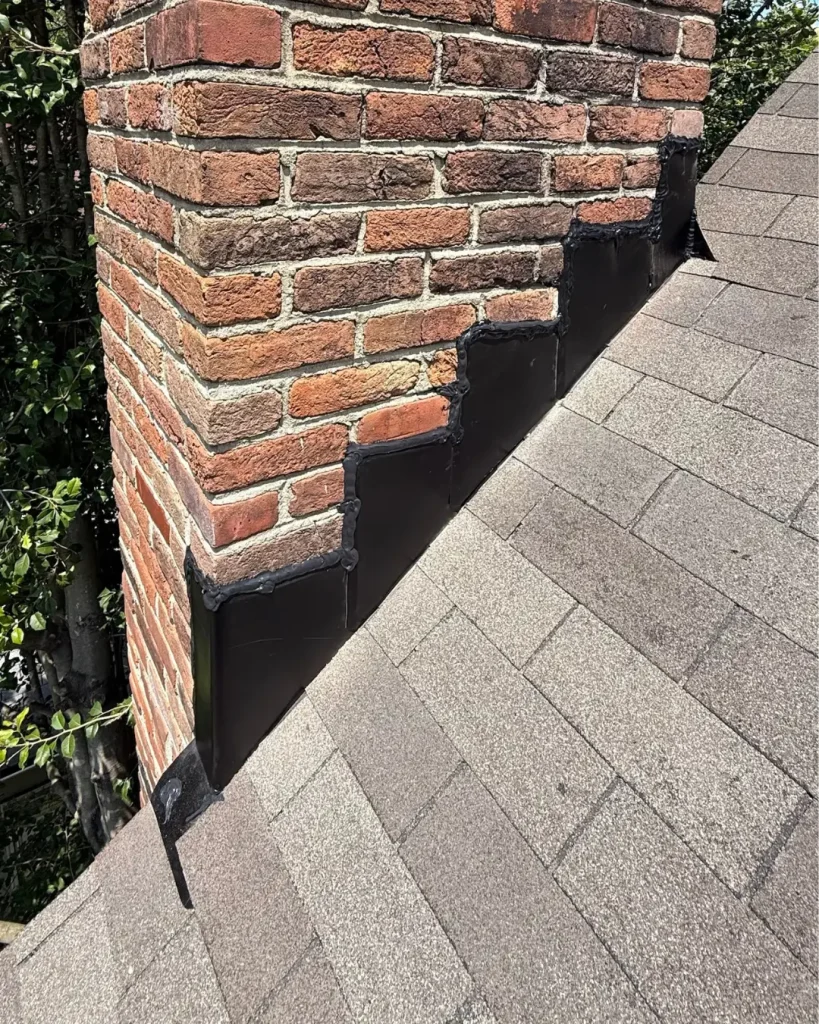

A properly installed chimney flashing system should include both step flashing and counter flashing working together as a complete waterproofing system.
Chimney Flashing as Part of the Complete Chimney Leak System
While chimney flashing plays a critical role in waterproofing, it is only one part of a larger system. Chimney leaks can also be caused by masonry deterioration, crown damage, or prefab chimney system failures. Understanding how flashing connects to the overall chimney leak system is essential for proper diagnosis and long-term repair.
How to Fix a Chimney Flashing Leak

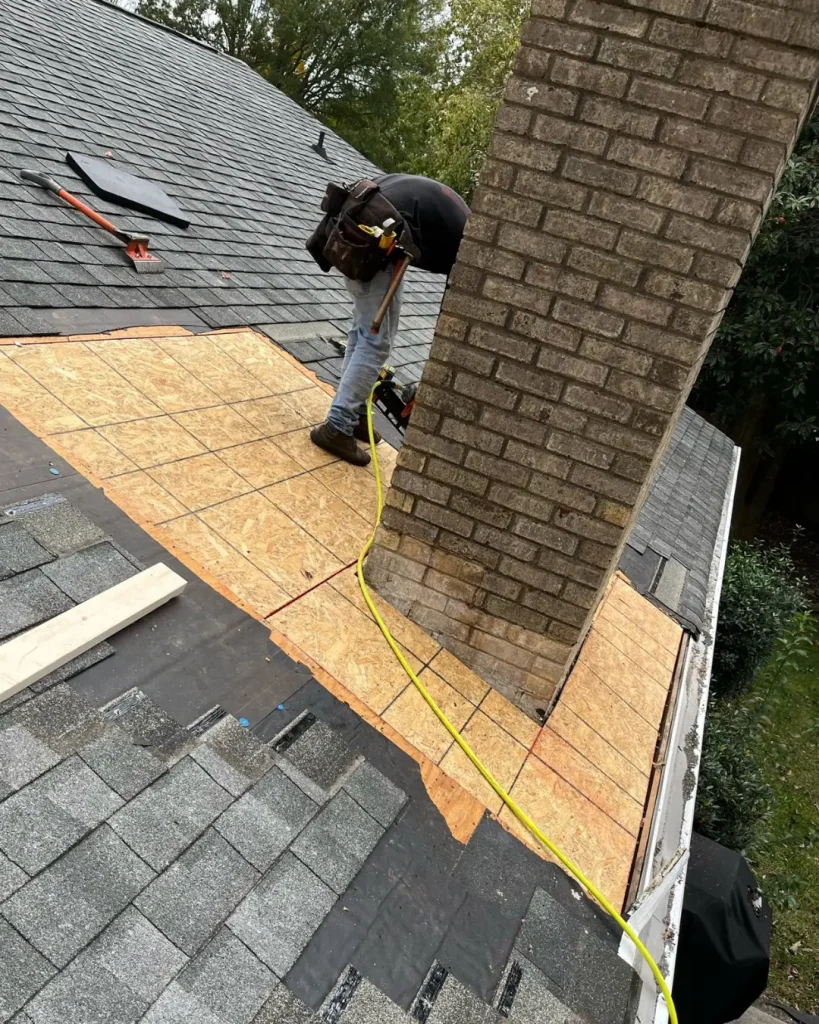

To fix a chimney flashing leak correctly, you must remove the surrounding roofing materials and rebuild the flashing system from the roof deck up.
Proper Repair Steps:
- Remove shingles around the chimney
- Inspect the roof deck for water damage
- Install ice and water shield underlayment
- Install new step flashing along the chimney base
- Replace shingles and seal all transitions
- Install counter flashing embedded into the brick

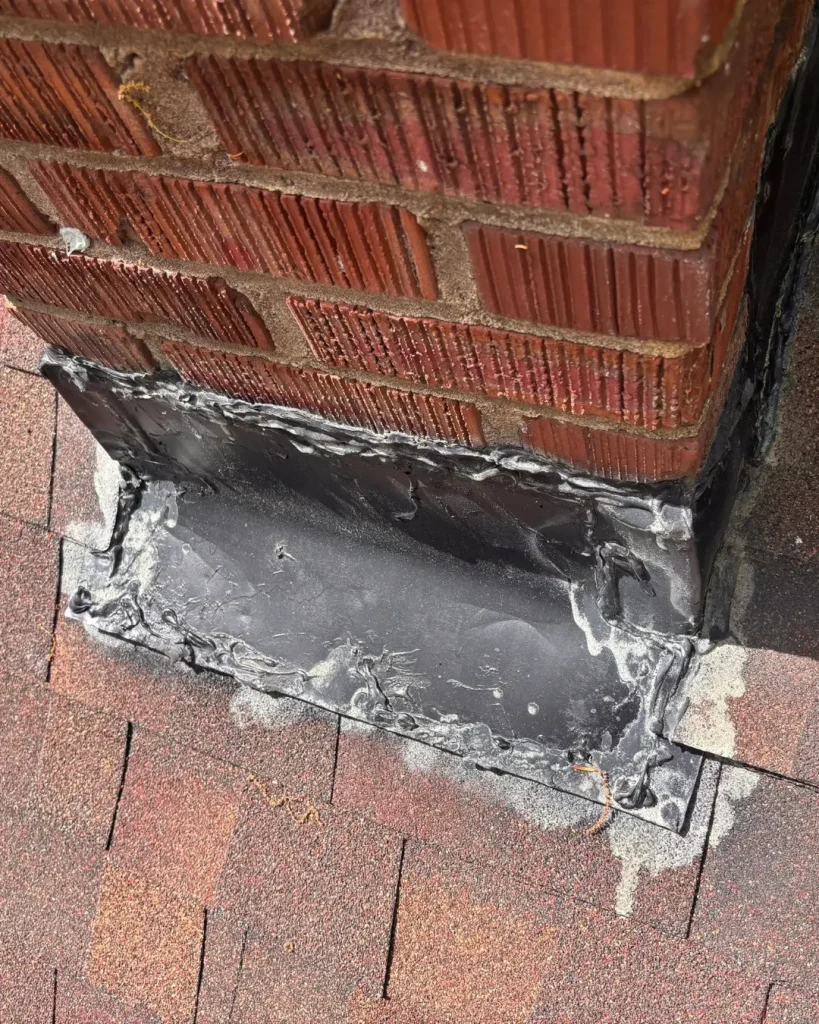

Quick fixes like caulking do not solve the problem long term. A proper repair requires rebuilding the flashing system.
🧱 Related Chimney Leak Problems
Chimney flashing is only one potential cause of a chimney leak. Other common issues include:
- chimney leak causes and repair solutions
- masonry chimney leaks
- prefab chimney leak problems
- chimney crown damage and cracking
- chimney cricket installation
Each of these issues can allow water intrusion and should be evaluated as part of a complete chimney inspection.
🌧️ When a Chimney Cricket Is Needed
For wider chimneys, flashing alone may not be enough to prevent leaks.
A chimney cricket is often required when:
- The chimney is wider than 30 inches
- Water tends to pool behind the chimney
- The roof slope directs water toward the chimney
Learn more about proper installation here:
👉 chimney cricket installation
🏠 Chimney Leak Repair Services in Your Area
If you are dealing with water intrusion around your chimney, it is important to address the full scope of the issue. In many cases, flashing failure is just one component of a larger chimney leak that requires a complete system evaluation.
If you are dealing with a chimney flashing leak, professional repair is essential to prevent further damage.
We provide chimney leak repair services throughout Hampton Roads, including:
- chimney leak repair Virginia Beach
- chimney leak repair Chesapeake VA
- chimney leak repair Norfolk VA
- chimney leak repair Newport News VA
- chimney leak repair Hampton VA
Each repair is performed with a focus on long-term waterproofing, proper installation methods, and compliance with current building standards.
❓ Frequently Asked Questions
Chimney flashing leaks are usually caused by improper installation, sealant failure, corrosion, or missing counter flashing.
In some cases, minor repairs can be made. However, if the flashing system is improperly installed or deteriorated, full replacement is often necessary.
Heavy rain combined with wind can force water under improperly installed flashing, revealing weaknesses that may not appear during light rain.
Chimney flashing is part of the roofing system, but it must integrate correctly with the chimney structure to function properly.
Chimney leaks around flashing are typically caused by improper installation, sealant failure, or material deterioration. However, flashing is often just one part of a broader issue. Learn more about all causes of chimney leaks and how they are properly repaired.
Understanding the Full Chimney Leak Problem
Chimney flashing is the first line of defense against water intrusion, but it must work together with other components to prevent leaks. To fully understand how chimney leaks develop and how to prevent them, visit our complete guide to chimney leak repair and causes.
🧠 Final Thought
A chimney flashing leak is not just a minor issue—it is a critical failure point in your roofing system. Without proper repair, water intrusion can lead to structural damage, mold growth, and costly repairs.
By understanding how chimney flashing works and addressing problems early, you can protect both your chimney and your home from long-term damage.
